Bulk Orders, Custom Quotes & Project Support

Planning a larger order or need a configuration tailored to your project? Perun Industries provides custom quotations for bulk purchases, dealer orders, organizations, development teams and professional users.

Pricing is based on order quantity, selected components, specifications, packaging requirements and delivery destination. Custom frame configurations, replacement-part packages, hardware sets, TPU accessories and component bundles may also be arranged upon request.

Not sure which frame, motor size or component combination fits your application? Contact us with your intended use, target payload, battery setup and required quantity. We can help review your requirements, recommend suitable options and prepare a project-specific quotation.

For bulk pricing, technical consultation or custom modifications , contact Perun Industries before placing your order.

CARBON FIBRE DRONE FRAMES

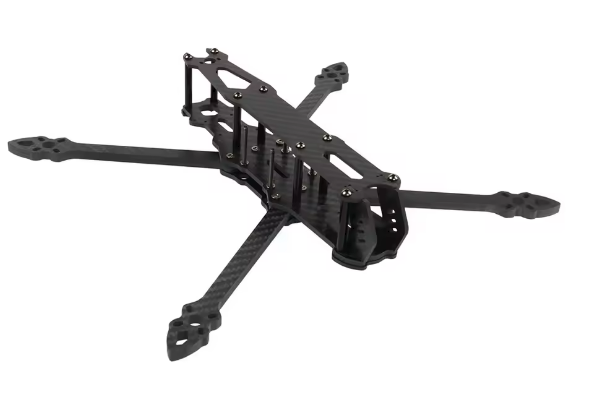

7 INCH FRAMES

    • Maximum propeller: 7 inch

    • Wheelbase: 295 mm

    • Approximate body dimensions: 232 × 182 mm

    • Arm thickness: 6 mm

    • Bottom plate: 3 mm

    • Middle arm-locking plate: 3 mm

    • Top plate: 2 mm

    • Camera side plates: 2.5 mm

    • Front and rear reinforcement plates: 2 mm

    • Internal deck height: approximately 35 mm

    • Camera width: 19 mm

    • Motor mounting: 16 × 16 mm and 19 × 19 mm

    • FC mounting: 20 × 20 mm and 30.5 × 30.5 mm

      • Maximum propeller: 7 inch

      • Wheelbase: 295 mm

      • Approximate body dimensions: 232 × 182 mm

      • Arm thickness: 6 mm

      • Bottom plate: 3 mm

      • Middle arm-locking plate: 3 mm

      • Top plate: 2 mm

      • Camera side plates: 2.5 mm

      • Front and rear reinforcement plates: 2 mm

      • Internal deck height: approximately 35 mm

      • Camera width: 19 mm

      • Motor mounting: 16 × 16 mm and 19 × 19 mm

      • FC mounting: 20 × 20 mm and 30.5 × 30.5 mm

      • Maximum propeller: 10 inch

      • Wheelbase: 430 mm

      • Arm thickness: 7.5 mm

      • Bottom plate: 3 mm

      • Middle arm-locking plate: 3 mm

      • Top plate: 2 mm

      • Camera side plates: 2.5 mm

      • Front/rear plates: approximately 2–2.5 mm

      • Internal deck height: 20-35 mm (CUSTOMER DEFINED)

      • Camera width: 19 mm

      • Motor mounting: 16 × 16 mm and 19 × 19 mm

      • FC/VTX mounting: 20 × 20 mm and 30.5 × 30.5 mm

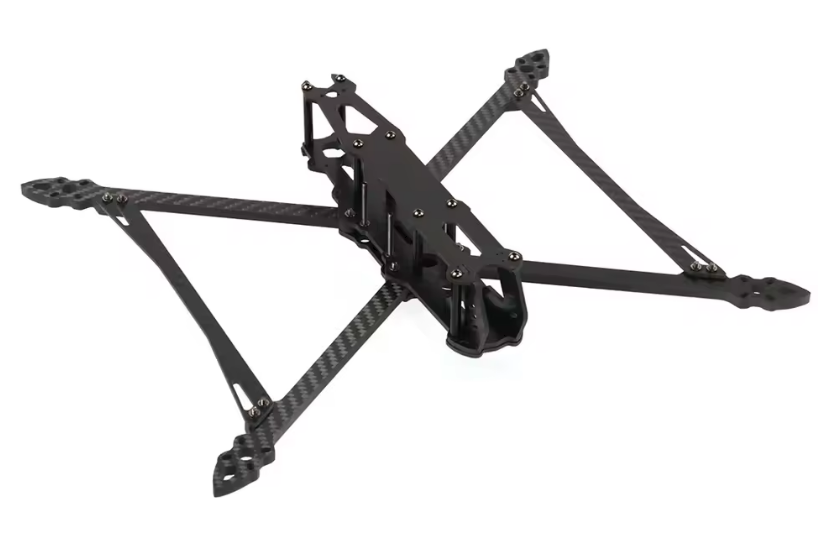

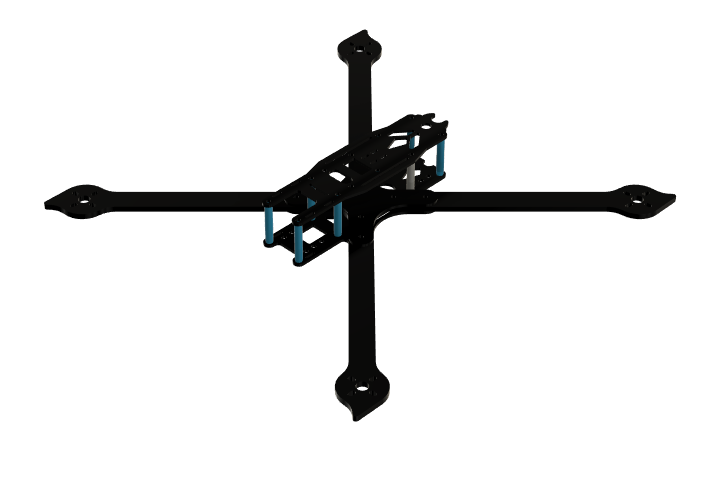

8 INCH FRAMES

  • Wheelbase: 367mm
    Weight: about 214g
    Thickness of bottom plate: 3mm
    Thickness of top plate: 2mm
    Thickness of camera arm: 6mm
    Camera side panel thickness: 2.5mm
    Camera mounting hole spacing: 19 mm
    Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
    Flight Control Mounting Pitch: 30.5*30.5mm
    Inner space height: 35mm
    Motor mounting hole pitch: 16*16mm & 19*19mm

  • Wheelbase: 367mm
    Weight: about 214g
    Thickness of bottom plate: 3mm
    Thickness of top plate: 2mm
    Thickness of camera arm: 6mm
    Camera side panel thickness: 2.5mm
    Camera mounting hole spacing: 19 mm
    Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
    Flight Control Mounting Pitch: 30.5*30.5mm
    Inner space height: 35mm
    Motor mounting hole pitch: 16*16mm & 19*19mm

      • Maximum propeller: 10 inch

      • Wheelbase: 430 mm

      • Arm thickness: 7.5 mm

      • Bottom plate: 3 mm

      • Middle arm-locking plate: 3 mm

      • Top plate: 2 mm

      • Camera side plates: 2.5 mm

      • Front/rear plates: approximately 2–2.5 mm

      • Internal deck height: 20-35 mm (CUSTOMER DEFINED)

      • Camera width: 19 mm

      • Motor mounting: 16 × 16 mm and 19 × 19 mm

      • FC/VTX mounting: 20 × 20 mm and 30.5 × 30.5 mm

9 INCH FRAMES

  • Wheelbase: 367mm
    Weight: about 214g
    Thickness of bottom plate: 3mm
    Thickness of top plate: 2mm
    Thickness of camera arm: 6mm
    Camera side panel thickness: 2.5mm
    Camera mounting hole spacing: 19 mm
    Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
    Flight Control Mounting Pitch: 30.5*30.5mm
    Inner space height: 35mm
    Motor mounting hole pitch: 16*16mm & 19*19mm

  • Wheelbase: 367mm
    Weight: about 214g
    Thickness of bottom plate: 3mm
    Thickness of top plate: 2mm
    Thickness of camera arm: 6mm
    Camera side panel thickness: 2.5mm
    Camera mounting hole spacing: 19 mm
    Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
    Flight Control Mounting Pitch: 30.5*30.5mm
    Inner space height: 35mm
    Motor mounting hole pitch: 16*16mm & 19*19mm

      • Maximum propeller: 10 inch

      • Wheelbase: 430 mm

      • Arm thickness: 7.5 mm

      • Bottom plate: 3 mm

      • Middle arm-locking plate: 3 mm

      • Top plate: 2 mm

      • Camera side plates: 2.5 mm

      • Front/rear plates: approximately 2–2.5 mm

      • Internal deck height: 20-35 mm (CUSTOMER DEFINED)

      • Camera width: 19 mm

      • Motor mounting: 16 × 16 mm and 19 × 19 mm

      • FC/VTX mounting: 20 × 20 mm and 30.5 × 30.5 mm

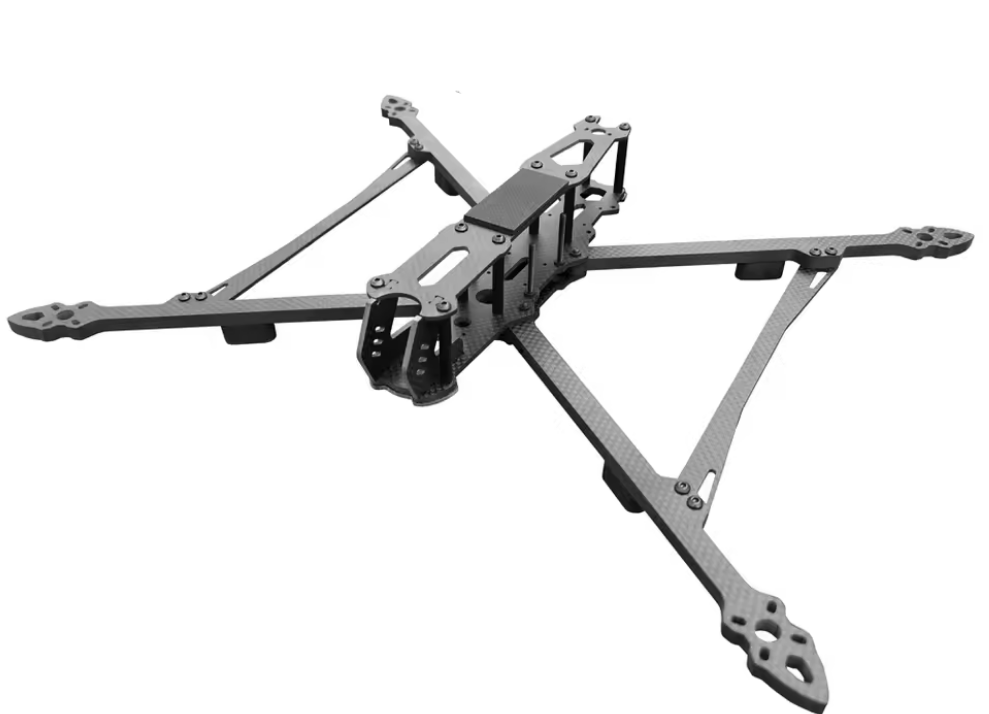

10 INCH FRAMES

      • Maximum propeller: 10 inch

      • Wheelbase: 427 mm

      • Frame dimensions: approximately 332 × 268 mm

      • Arm thickness: 7.5 mm

      • Bottom plate: 3 mm

      • Middle arm-locking plate: 3 mm

      • Top plate: 2 mm

      • Camera side plates: 2.5 mm

      • Front/rear plates: approximately 2–2.5 mm

      • Internal deck height: 35 mm

      • Camera width: 19 mm

      • Motor mounting: 16 × 16 mm and 19 × 19 mm

      • FC/VTX mounting: 20 × 20 mm and 30.5 × 30.5 mm

    • Maximum propeller: 10 inch

    • Wheelbase: 427 mm

    • Frame dimensions: approximately 332 × 268 mm

    • Arm thickness: 7.5 mm

    • Bottom plate: 3 mm

    • Middle arm-locking plate: 3 mm

    • Top plate: 2 mm

    • Camera side plates: 2.5 mm

    • Front/rear plates: approximately 2–2.5 mm

    • Internal deck height: 35 mm

    • Camera width: 19 mm

    • Motor mounting: 16 × 16 mm and 19 × 19 mm

    • FC/VTX mounting: 20 × 20 mm and 30.5 × 30.5 mm

      • Maximum propeller: 10 inch

      • Wheelbase: 430 mm

      • Arm thickness: 7.5 mm

      • Bottom plate: 3 mm

      • Middle arm-locking plate: 3 mm

      • Top plate: 2 mm

      • Camera side plates: 2.5 mm

      • Front/rear plates: approximately 2–2.5 mm

      • Internal deck height: 20-35 mm (CUSTOMER DEFINED)

      • Camera width: 19 mm

      • Motor mounting: 16 × 16 mm and 19 × 19 mm

      • FC/VTX mounting: 20 × 20 mm and 30.5 × 30.5 mm

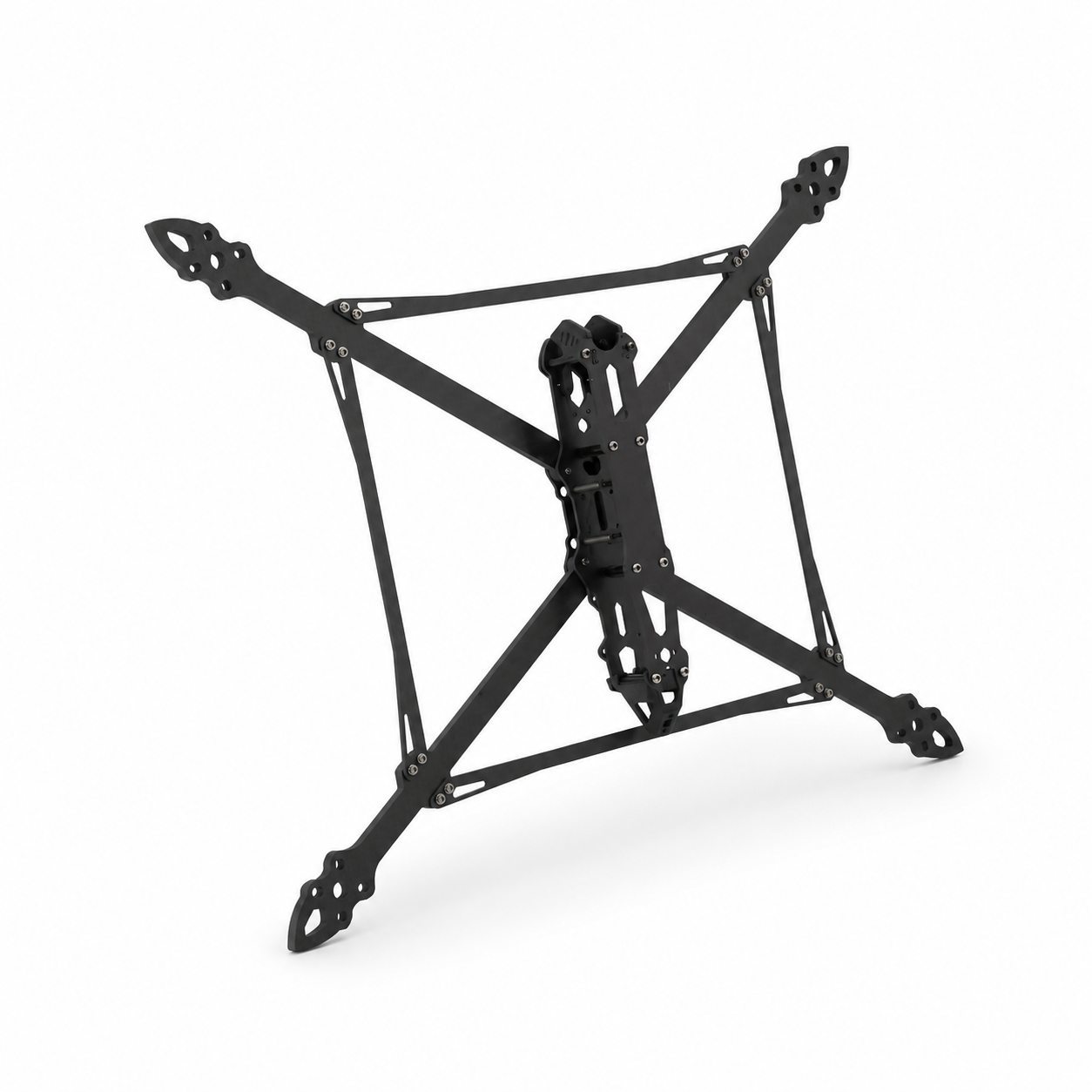

13 INCH FRAMES

    • Maximum propeller: 13 inch

    • Wheelbase: 539 mm

    • Arm thickness: 8 mm recommended

    • Bottom plate: 3 mm

    • Middle arm clamp: 3 mm

    • Top plate: 2 mm

    • Camera side plates: 2.5 mm

    • Arm braces: 3 mm

    • Camera width: 19 mm

    • FC/VTX mounting: 20 × 20 mm and 30.5 × 30.5 mm

    • Recommended motor holes: 19 × 19 mm, 25 × 25 mm and/or 30 × 30 mm depending on your motor range

    • Maximum propeller: 13 inch

    • Wheelbase: 570 mm

    • Arm thickness: 8 mm

    • Bottom plate: 3 mm

    • Middle plate: 3 mm

    • Lower arm-locking plate: 3 mm

    • Top plate: 2 mm

    • Front plate: 2.5 mm

    • Rear plate: 2.5 mm

    • Camera side plates: 2.5 mm

    • Arm braces: 3 mm

    • Camera width: 19 mm

    • Motor mounting: commonly 30 mm M4

    • FC/VTX mounting: 20 × 20 mm and 30.5 × 30.5 mm

    • Approximate frame weight: 520 g

    • Product specification: 13-inch

    • Frame configuration: True X / Positive X

    • Overall size: 480 × 480 mm

    • Wheelbase: 593 mm

    • Frame weight: 831 g, excluding 3D-printed parts

    • Carbon-fibre material: T300

    • Top plate thickness: 2.0 mm

    • Middle plate thickness: 4.0 mm

    • Bottom plate thickness: 4.0 mm

    • Side-panel thickness: 2.0 mm

    • Arm thickness: 10 mm

    • Flight-controller mounting pattern: 30.5 × 30.5 mm

    • Video-transmitter mounting patterns: 20 × 20 mm and 30.5 × 30.5 mm

    • Motor mounting pattern: 30 mm

    • Camera width: 20 mm

    • Internal frame height: 25 mm

    • Product specification: 16-inch

    • Frame configuration: True X

    • Product specification: 16-inch

    • Frame configuration: True X

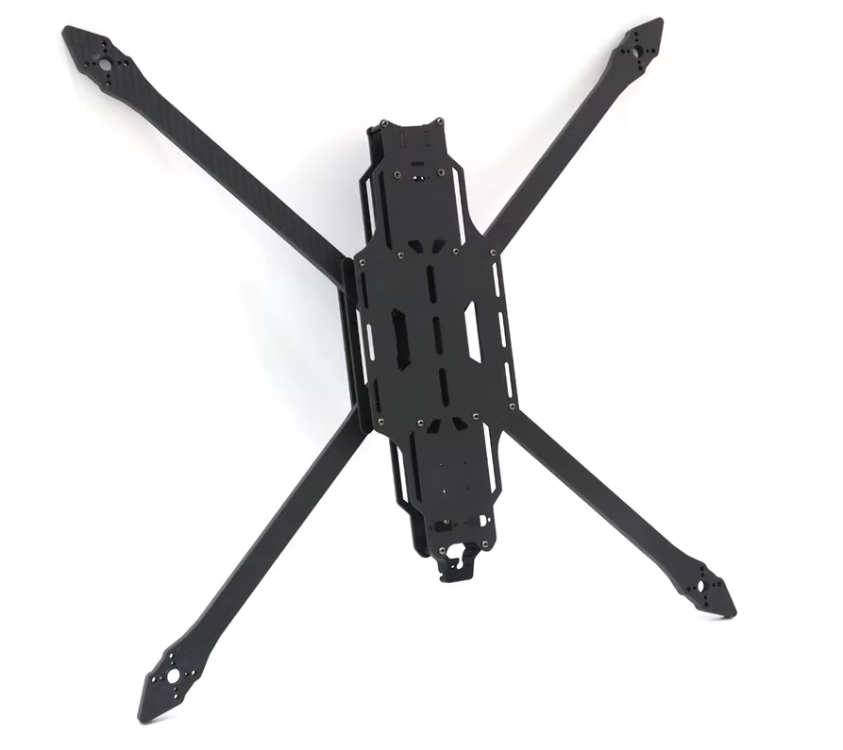

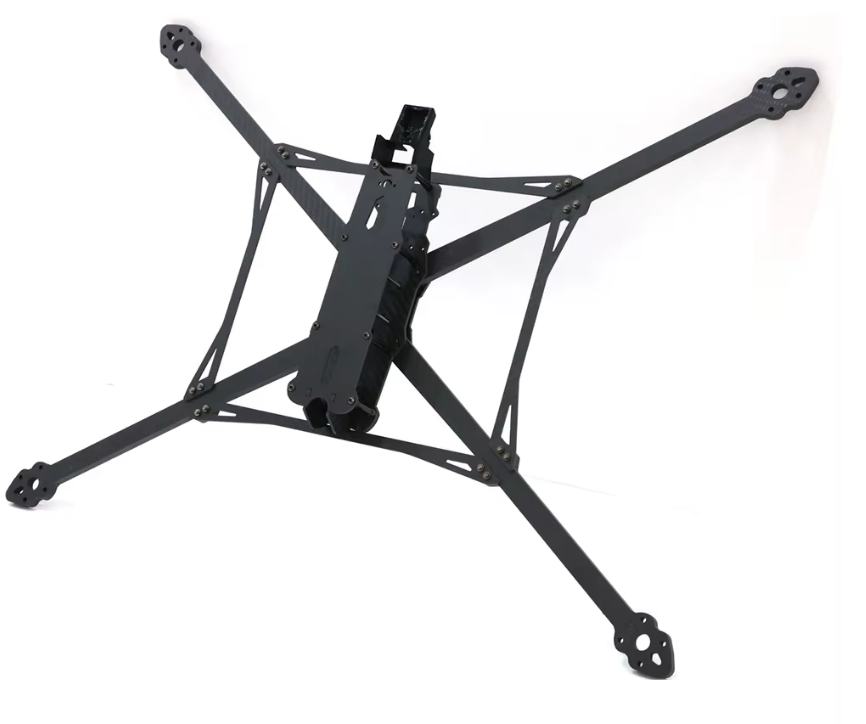

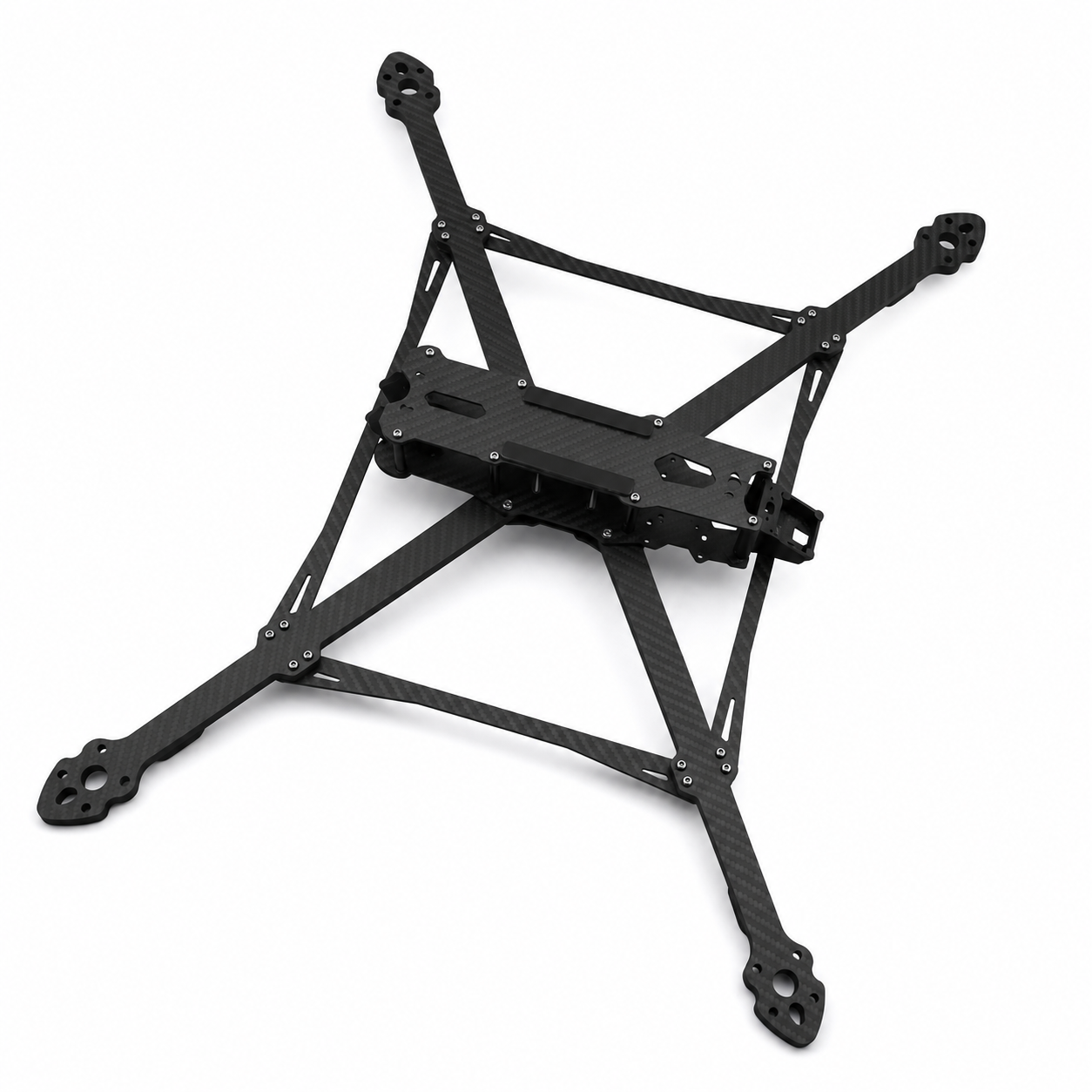

15 INCH FRAMES

    • Maximum propeller: 15 inch

    • Wheelbase: commonly 662 mm

    • Approximate dimensions: 593 × 463 mm

    • Arm thickness: 8 mm minimum

    • Bottom plate: 3 mm

    • Middle arm clamp: 3 mm

    • Top plate: 2 mm

    • Camera side plates: 2.5 mm

    • Arm braces: 3 mm

    • Camera width: 19–20 mm

    • Motor mounting: preferably 25 × 25 mm and 30 × 30 mm M4

    • FC/VTX mounting: 20 × 20 mm and 30.5 × 30.5 mm

    • Maximum propeller: 15 inch

    • Wheelbase: 680 mm

    • Arm thickness: 8 mm

    • Bottom plate: 3 mm

    • Middle plate: 3 mm

    • Lower arm-locking plate: 3 mm

    • Top plate: 2 mm

    • Front plate: 2.5 mm

    • Rear plate: 2.5 mm

    • Camera plates: 2.5 mm

    • Arm braces: 3 mm

    • Camera width: 19 mm

    • Motor mounting:

    • FC/VTX mounting: 20 × 20 mm and 30.5 × 30.5 mm

    • Approximate frame weight: 590 g

    • Product specification: 15-inch

    • Frame configuration: True X / Positive X

    • Overall size: 517 × 517 mm

    • Wheelbase: 647 mm

    • Frame weight: 915 g, excluding 3D-printed parts

    • Carbon-fibre material: T300

    • Top plate thickness: 2.0 mm

    • Middle plate thickness: 4.0 mm

    • Bottom plate thickness: 4.0 mm

    • Side-panel thickness: 2.0 mm

    • Arm thickness: 10 mm

    • Flight-controller mounting pattern: 30.5 × 30.5 mm

    • Video-transmitter mounting patterns: 20 × 20 mm and 30.5 × 30.5 mm

    • Motor mounting pattern: 30 mm

    • Camera width: 20 mm

    • Internal frame height: 25 mm

    • Product specification: 16-inch

    • Frame configuration: True X

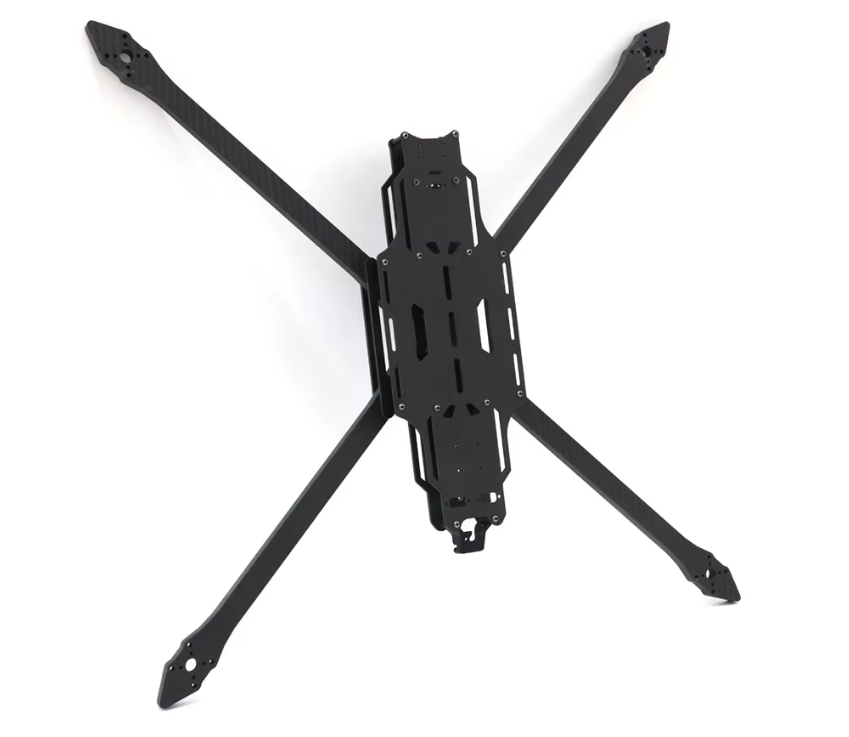

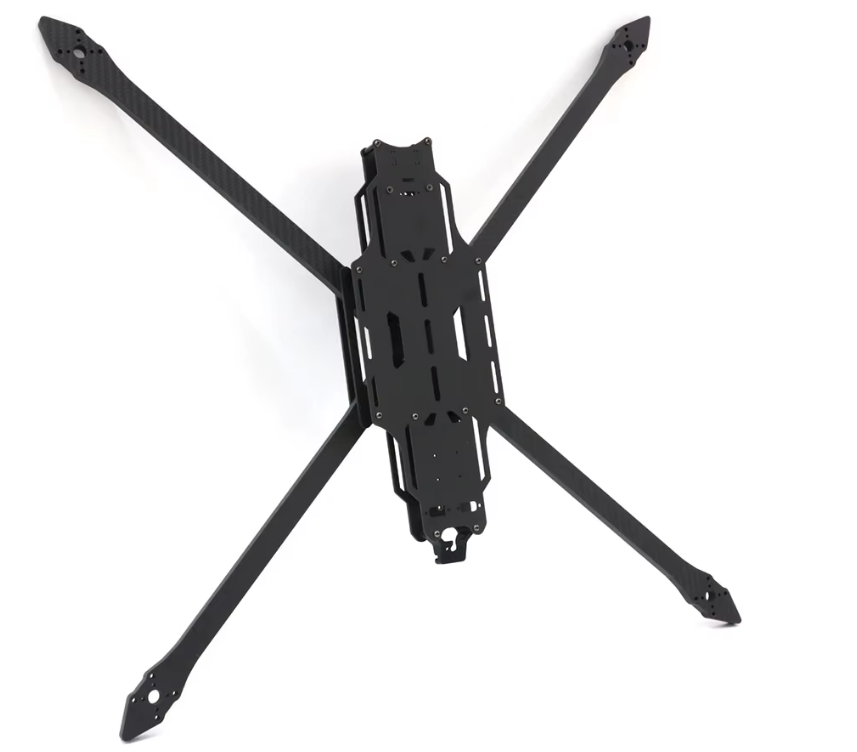

16-18INCH FRAMES

    • Product specification: 18-inch

    • Frame configuration: True X

    • Product specification: 15-inch

    • Frame configuration: True X / Positive X

    • Overall size: 517 × 517 mm

    • Wheelbase: 647 mm

    • Frame weight: 915 g, excluding 3D-printed parts

    • Carbon-fibre material: T300

    • Top plate thickness: 2.0 mm

    • Middle plate thickness: 4.0 mm

    • Bottom plate thickness: 4.0 mm

    • Side-panel thickness: 2.0 mm

    • Arm thickness: 10 mm

    • Flight-controller mounting pattern: 30.5 × 30.5 mm

    • Video-transmitter mounting patterns: 20 × 20 mm and 30.5 × 30.5 mm

    • Motor mounting pattern: 30 mm

    • Camera width: 20 mm

    • Internal frame height: 25 mm

    • Product specification: 15-inch

    • Frame configuration: True X / Positive X

    • Overall size: 517 × 517 mm

    • Wheelbase: 647 mm

    • Frame weight: 915 g, excluding 3D-printed parts

    • Carbon-fibre material: T300

    • Top plate thickness: 2.0 mm

    • Middle plate thickness: 4.0 mm

    • Bottom plate thickness: 4.0 mm

    • Side-panel thickness: 2.0 mm

    • Arm thickness: 10 mm

    • Flight-controller mounting pattern: 30.5 × 30.5 mm

    • Video-transmitter mounting patterns: 20 × 20 mm and 30.5 × 30.5 mm

    • Motor mounting pattern: 30 mm

    • Camera width: 20 mm

    • Internal frame height: 25 mm

CARBON FIBRE FRAME REPLACEMENT PARTS

PLASTIC PARTS

(Custom design modifications, material selection and manufacturing methods are available upon request.)

Protection and Landing Components

  • Replaceable arm-end protectors

  • TPU motor-base protectors

  • Front and rear bumper options

  • Camera protection cages

  • Short landing feet

  • Tall landing gear for additional underside clearance

  • Replaceable skids and soft landing pads

  • Reinforced landing sets for 13–18″ frames

Battery and Electronics Mounting

  • Carbon or polymer battery trays

  • Anti-slip battery pads

  • Dual-strap battery guides

  • XT60, XT90 and XT120 connector mounts

  • Capacitor holders

  • Cable-management clips and strain-relief parts

  • 20 × 20 and 30.5 × 30.5 adapter trays

  • Separate navigation and compass mounting plates

  • GPS mast and protected low-profile GPS mounts

Camera and Antenna Parts

  • 19 mm and 22 mm camera adapters

  • Replaceable lens protectors

  • Adjustable camera-angle plates

  • Soft-mounted action-camera platforms

  • VTX and receiver mounts

  • Single and dual-SMA antenna mounts

  • ELRS, TBS and other common receiver-antenna mounts

  • GPS and compass isolation mounts

  • Replacement arm (1PC/2PCS/4PCS)

  • Top plate

  • Bottom plate

  • Center plate

  • Front camera side plates

  • Front bumper plate

  • Rear bumper plate

  • LANDING LEGS

  • XT60 MOUNTS

  • XT90 MOUNTS

CARBON FIBRE FRAME REPLACEMENT PARTS
